Jiangyin Rock Gabion Co., Ltd. supply Architectural Gabions Products, we can produce and design, customize specifications, provide complete specifications, and ensure timely delivery. Architectural gabions are wire mesh cages filled with stones or other materials, classified as gabion walls, panels, baskets, fences, cladding, seating units, planters, steps, landscape partitions, and water feature bases. Types include welded, woven, galfan-coated, stainless steel, and PVC-coated gabions. Uses include retaining walls, landscape boundaries, partitions, slope protection, noise barriers, riverbank reinforcement, facade cladding, privacy screens, planter boxes, urban furniture, water features, erosion control, green wall support, and sculptural or functional elements. Size, mesh, wire diameter, and filling material can be customized. We welcome business contacts and cooperation.
Architectural Gabion Specifications
- Gabion Wall Sizes: Common sizes include 1.0 × 1.0 × 1.0 m, 2.0 × 1.0 × 1.0 m, and 3.0 × 1.0 × 1.0 m, widely used for retaining and landscape walls.
- Gabion Basket Dimensions: Typical basket sizes are 1.0 × 0.5 × 0.5 m, 1.5 × 0.5 × 0.5 m, and 2.0 × 1.0 × 0.5 m for structural and decorative applications.
- Gabion Panel Thickness: Panels are generally 3 mm to 6 mm in wire diameter, with thicker options available for heavy-duty installations.
- Mesh Opening Size: Mesh openings commonly range from 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm to 100 × 100 mm, depending on stone size.
- Wire Diameter Range: Architectural gabions use wire diameters between 3.0 mm and 6.0 mm, with 4.0 mm and 5.0 mm as standard options.
- Galfan Coated Gabion Wire Specifications: Galfan wire coating thickness typically ranges from 230 g/m² to 300 g/m² for corrosion resistance.
- PVC Coating Thickness: PVC-coated wires are generally 0.5 mm to 1.0 mm in thickness, suitable for long-term outdoor use.
- Stainless Steel Gabion Wire Types: Stainless steel grades include SS304 and SS316, commonly used in architectural facades and decorative features.
- Gabion Wall Height: Standard wall heights are 0.5 m, 1.0 m, 1.5 m, and 2.0 m, with custom heights available for project requirements.
- Gabion Wall Length: Lengths typically range from 1.0 m to 3.0 m per unit, extendable by connecting multiple cages.
- Gabion Seating Bench Dimensions: Common dimensions for gabion benches are 1.2 × 0.5 × 0.45 m and 1.5 × 0.5 × 0.5 m.
- Gabion Planter Box Sizes: Planter boxes are usually 1.0 × 0.5 × 0.5 m or 0.8 × 0.4 × 0.4 m, designed for garden and landscape projects.
- Gabion Noise Barrier Wall Sizes: Noise barrier gabions are commonly 2.0 × 0.5 × 0.5 m or 2.0 × 1.0 × 0.5 m, depending on installation height.
- Gabion Facade Panel Sizes: Facade panels are often 1.0 × 2.0 m or 1.5 × 3.0 m, with customized sizes for cladding systems.
- Stone Filling Size Range: Recommended stone sizes for filling range from 80 mm to 200 mm, ensuring proper cage stability and drainage.
Picture Show

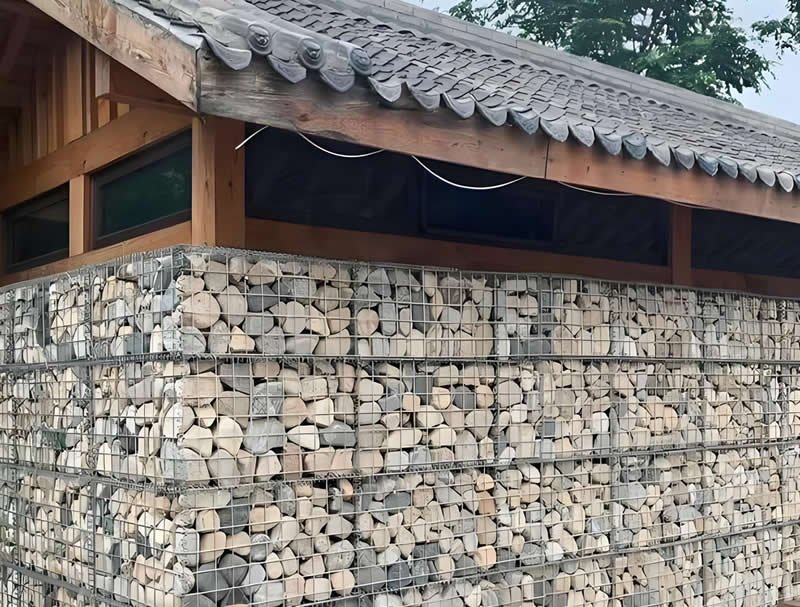

Pre-fabricated welded wire gabions applied for exterior wall cladding and soil-retaining landscape walls.
Stone-filled welded mesh cages designed for architectural wall cladding and outdoor garden walls.
Wire mesh gabions applied to building facade cladding and garden landscape wall construction.
Mesh cage panels filled with stone, designed for decorative facade finishes and soil-retaining walls.

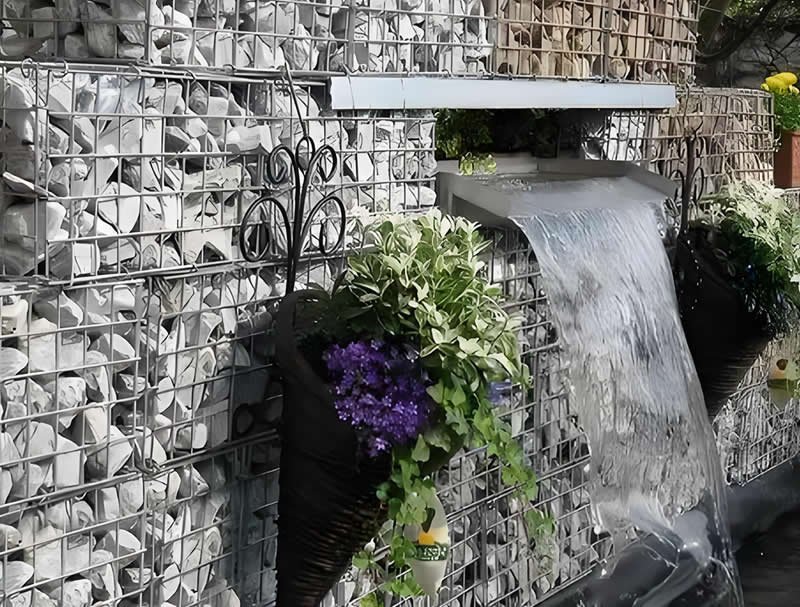

Custom-sized gabion cages manufactured for vertical water walls and integrated landscape water features.
Modular gabion systems for exterior wall surfaces and boundary walls in landscaping projects.
