PVC-Coated Gabions for Retaining Walls, Erosion & Flood Control

Jiangyin Rock Gabion Co., Ltd. offers durable PVC-coated gabions available in both welded and hexagonal (woven) wire mesh designs. These gabion containers are manufactured from steel wire—typically galvanized or Galfan-coated for base corrosion resistance—and further protected with a PVC coating. This outer layer significantly enhances durability, extends lifespan in harsh environments such as coastal or industrial areas, and improves resistance to abrasion, UV radiation, and chemicals. Our PVC-coated gabions are well-suited for applications including retaining walls, slope protection, channel lining, and erosion control. Constructed from low-carbon steel or Galfan wire with an additional PVC layer, they offer strong structural integrity, flexibility, and excellent water permeability, ensuring reliable performance in demanding conditions. We welcome inquiries and offer product customization.

PVC Coated Gabion Specifications

• Core Wire Diameter: The steel core wire before PVC coating usually ranges from 2.0 mm to 4.0 mm. Common sizes are 2.7 mm or 3.0 mm. Thicker wires provide more strength but reduce flexibility.
• PVC Coating Thickness: PVC coating is usually 0.4 mm to 0.6 mm thick, with 0.5 mm as standard. It protects the wire from corrosion and environmental damage.
• Overall Wire Diameter (Mesh Wire): The total mesh wire diameter, including PVC, is 3.0 mm to 5.0 mm. A 2.7 mm core with 0.5 mm coating gives about 3.7 mm overall.
• Selvedge Wire Diameter: Selvedge wire is thicker, 3.0 mm to 4.5 mm (core). It's usually 0.5 mm to 1.0 mm thicker than mesh wire. Coated size reaches 3.9 mm to 5.5 mm.
• Lacing and Bracing Wire Diameter: Lacing/bracing wire diameter is 2.0 mm to 2.4 mm (core), commonly 2.2 mm. With coating, it reaches around 3.2 mm overall.
• Mesh Type: PVC gabions are available in hexagonal woven mesh and welded mesh. Woven mesh is flexible; welded mesh is rigid and more structured.
• Mesh Opening Size (Hexagonal): Hexagonal mesh openings include 60×80 mm, 80×100 mm, and 100×120 mm. The 80×100 mm (8x10) type is most commonly used.
• Mesh Opening Size (Welded): Welded mesh sizes include 50×50 mm, 75×75 mm, and 100×100 mm. Rectangular types like 50×100 mm are also used.
• Tensile Strength of Wire: Wire tensile strength ranges from 350 N/mm² to 550 N/mm². Stronger wires offer more strength but less flexibility.
• PVC Coating Adhesion: The PVC coating must not crack, peel, or detach during use. Standards like ASTM A975 check the coating's bond to the wire.
• PVC Coating Hardness: PVC hardness is measured by Shore scale. Values range from Shore A 50–65 or Shore D 20–30, good for abrasion resistance.
• Corrosion Resistance: High-quality PVC gabions resist corrosion for 2000–3000 hours in ASTM B117 salt spray tests with no major coating failure.
• UV Resistance: UV inhibitors are added to PVC to prevent damage from sunlight. Design life may reach 50–100 years depending on exposure.
• Gabion Box/Basket Length: Gabion box lengths range from 1.0 m to 4.0 m. Common sizes are 1.0 m, 1.5 m, 2.0 m, 3.0 m, and 4.0 m.
• Gabion Box/Basket Width: Most gabions are 1.0 m wide. Other widths include 0.5 m, 1.5 m, and 2.0 m depending on the project requirements.
• Gabion Box/Basket Height: Standard heights are 0.3 m, 0.5 m, and 1.0 m. Boxes can be stacked to reach greater wall or structure heights.
• Gabion Mattress Dimensions: Mattress height: 0.17–0.5 m. Length: 2.0–6.0 m. Width: 1.0 or 2.0 m. Used mainly for erosion and channel lining.
• Internal Diaphragms: Boxes over 1.5 m long have internal diaphragms every 1.0 m. These divide the box for stability and shape retention.

Picture Show

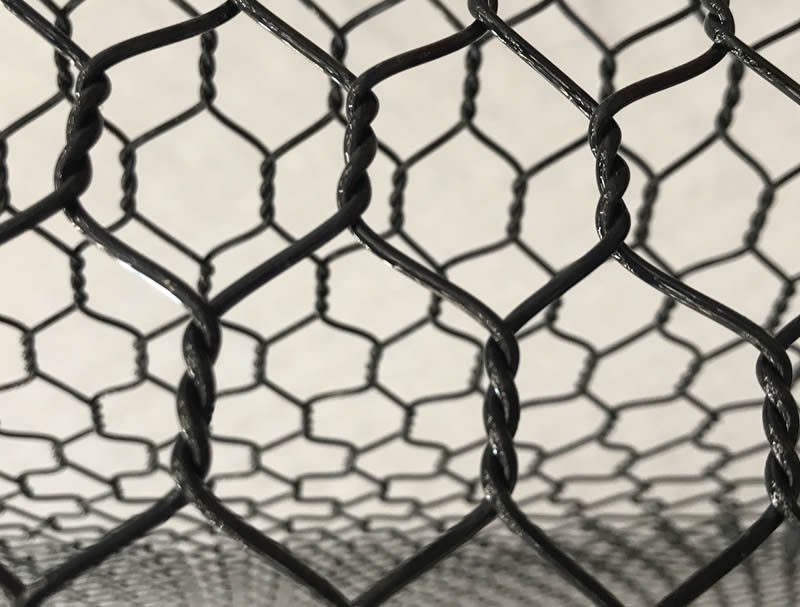

PVC Coated Hexagonal Gabion Box

Made of double-twisted hexagonal mesh with PVC-coated wire. Common size: 2.0 × 1.0 × 1.0 m; mesh opening: 80 × 100 mm; wire diameter (core): 2.7 mm + PVC 0.5 mm.

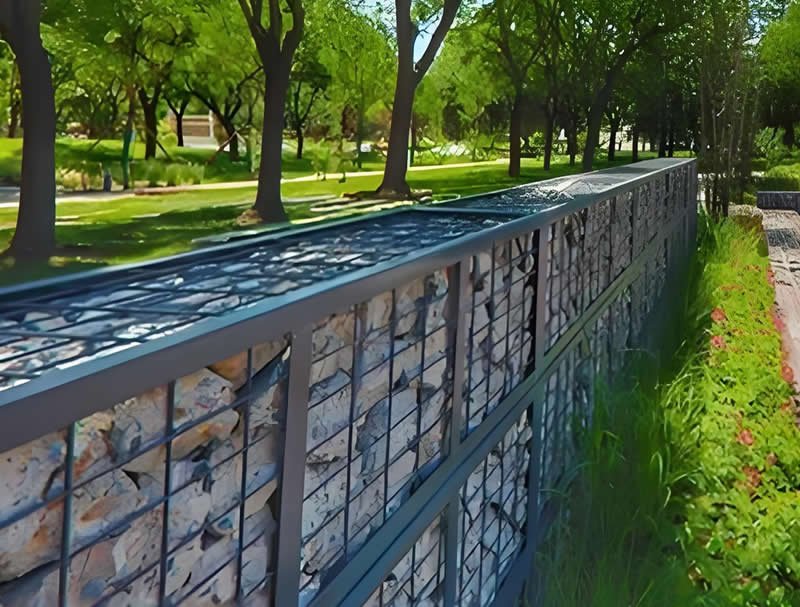

PVC Coated Welded Gabion Cage

Constructed from welded wire mesh panels with PVC coating. Common size: 1.0 × 1.0 × 1.0 m; mesh size: 50 × 50 mm; wire diameter: 4.0 mm including PVC.

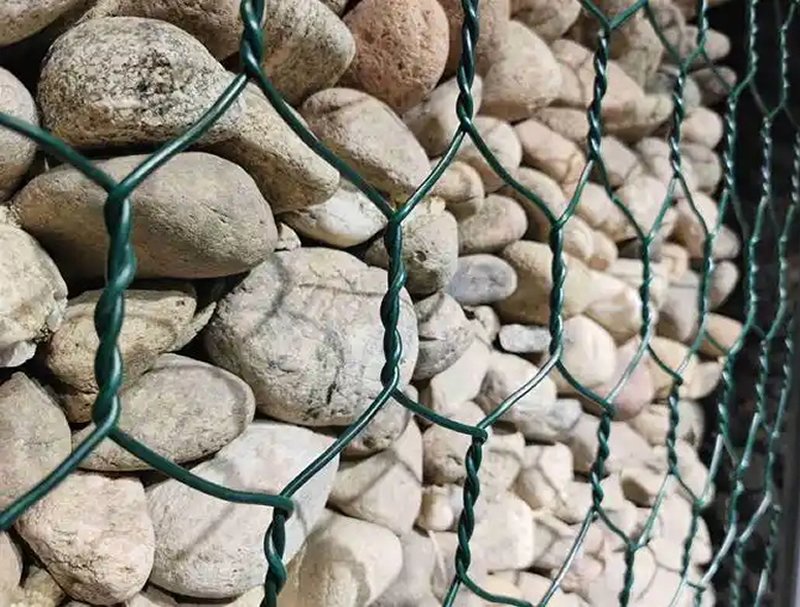

PVC Coated Gabion Wall Basket

Used for retaining walls and slope reinforcement. Size: 2.0 × 1.0 × 0.5 m; mesh type: hexagonal; mesh opening: 60 × 80 mm; wire: 2.7 mm core.

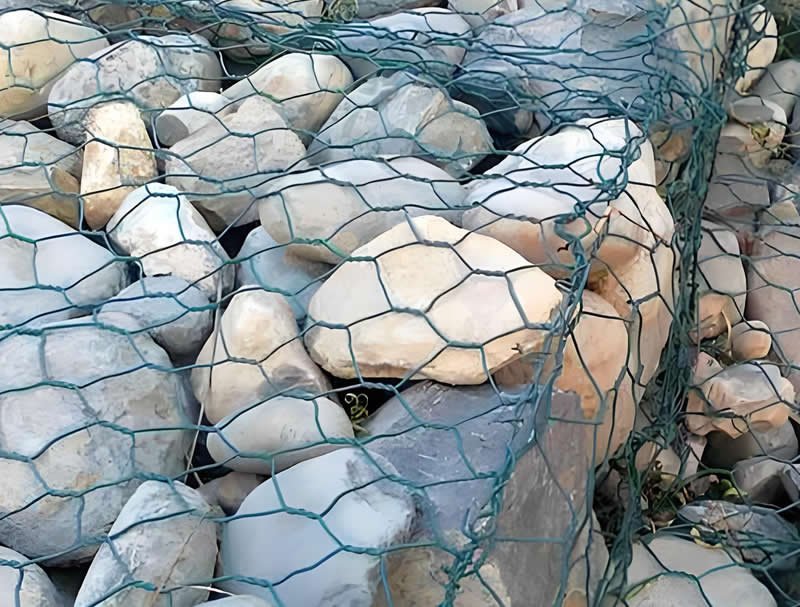

PVC Coated Gabion Retaining Structure

Designed for soil stabilization and load-bearing walls. Size: 1.5 × 1.0 × 1.0 m; mesh: welded; opening: 75 × 75 mm; wire diameter: 3.0 mm + PVC.

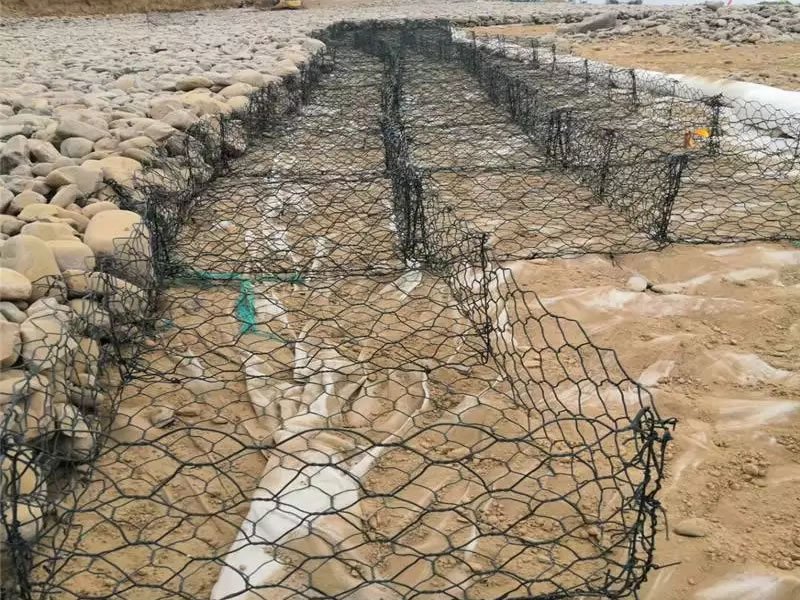

PVC Coated River Bank Gabion Mattress

Flat, wide mesh used for riverbank and channel protection. Size: 6.0 × 2.0 × 0.3 m; mesh: hexagonal; mesh opening: 80 × 100 mm; wire: 2.4 mm + PVC.

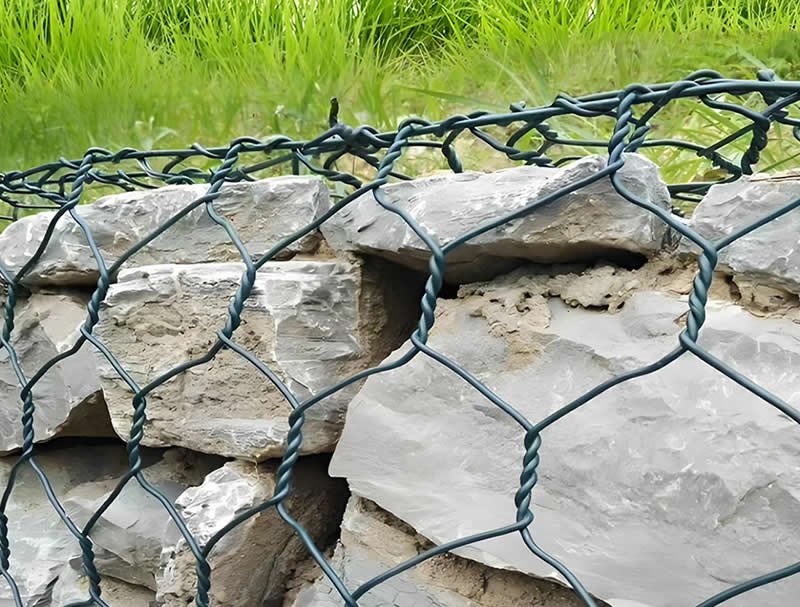

PVC Coated Slope Protection Gabion Net

Flexible units used on inclined surfaces to prevent erosion. Size: 3.0 × 1.0 × 0.5 m; mesh type: hexagonal; mesh size: 100 × 120 mm; core wire: 2.7 mm.

PVC Coated Green Gabion Fence Panel

Colored gabion fences made with welded mesh panels. Size: 2.0 × 0.5 × 1.0 m; mesh: 50 × 100 mm; wire diameter: 4.0 mm including PVC layer.

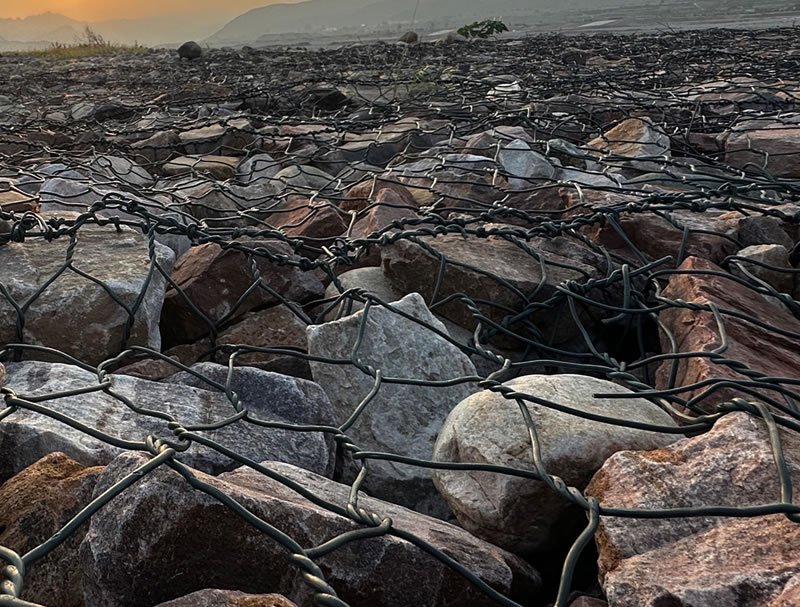

PVC Coated Triple Twist Gabion Basket

Constructed with triple-twisted hexagonal mesh for extra strength. Size: 1.0 × 1.0 × 1.0 m; mesh opening: 60 × 80 mm; wire: 3.0 mm + PVC 0.5 mm.

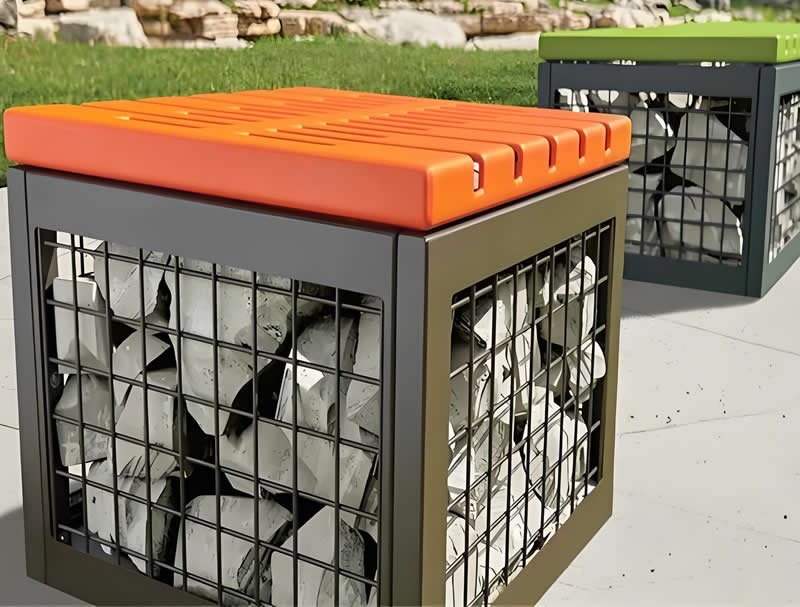

PVC Coated Decorative Gabion Cage

Used in landscaping, garden walls, and planters. Size: 1.0 × 0.5 × 0.5 m; welded mesh: 100 × 50 mm; wire: 3.5 mm with PVC.

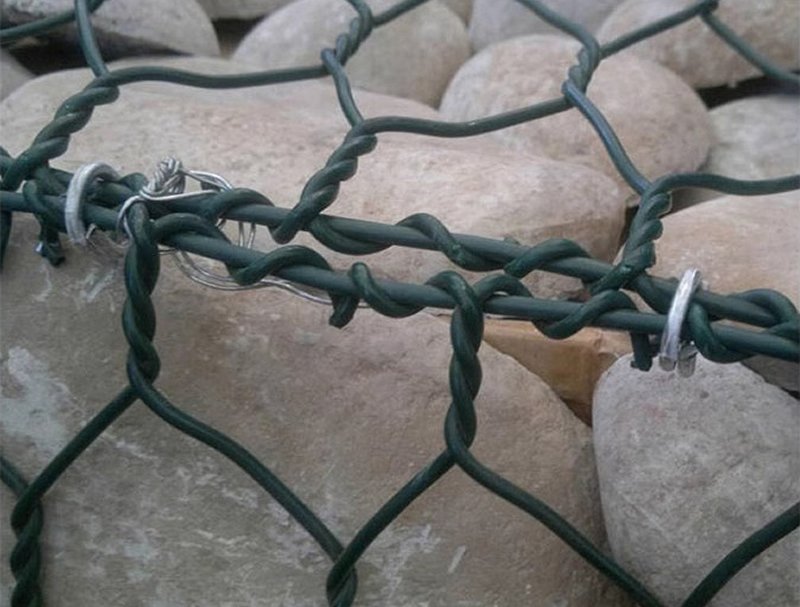

PVC Coated Anti-Erosion Gabion Mesh

Applied in water control and anti-scour installations. Size: 4.0 × 2.0 × 0.3 m; hexagonal mesh: 80 × 100 mm; core wire diameter: 2.2 mm + PVC.
