Jiangyin Rock Gabion Co., Ltd. produces Stone Filled Gabions. We provide customized specifications, full size options, and on-time delivery. Business cooperation is welcome. Stone filled gabions are wire mesh containers filled with stones, used in civil engineering, hydraulic projects, landscaping, and architectural works. Types include welded gabions for retaining walls, hexagonal woven gabions for slope and riverbank protection, Reno mattresses for erosion control, and gabion barriers for flood and security use. They are made from galvanized, Galfan, or PVC-coated wire. Stone size is 100–250 mm. Wire diameter, mesh size, and box dimensions can be customized.
Stone Filled Gabions Specifications
- Gabion Length: 1.0 m, 2.0 m, 3.0 m, 4.0 m, 5.0 m
- Gabion Width: 0.5 m, 1.0 m, 1.5 m, 2.0 m
- Gabion Height: 0.3 m, 0.5 m, 0.7 m, 1.0 m, 1.5 m
- Mesh Opening: 50 × 50 mm, 75 × 75 mm, 80 × 100 mm, 100 × 50 mm, 100 × 100 mm
- Wire Diameter: 2.7 mm, 3.0 mm, 3.5 mm, 4.0 mm, 5.0 mm
- Edge Wire Diameter: 3.4 mm, 4.0 mm, 4.5 mm, 5.0 mm
- Binding Wire Diameter: 2.2 mm, 2.5 mm, 3.0 mm
- Zinc Coating: 200–275 g/m² hot-dip galvanized
- Galfan Coating: 90% zinc, 10% aluminum
- PVC Coating: 0.5–1.0 mm thickness
- Diaphragm Spacing: every 0.5 m or 1.0 m
- Stone Size: 80–200 mm for small mesh, 100–250 mm standard
- Wire Tensile Strength: 380–550 MPa
- Surface Finish: Hot-dip galvanized, Galfan, PVC-coated
- Box Type: Welded mesh gabions, hexagonal woven gabions, Reno mattresses, gabion barriers
- Packing: Flat-packed bundles or wooden pallets

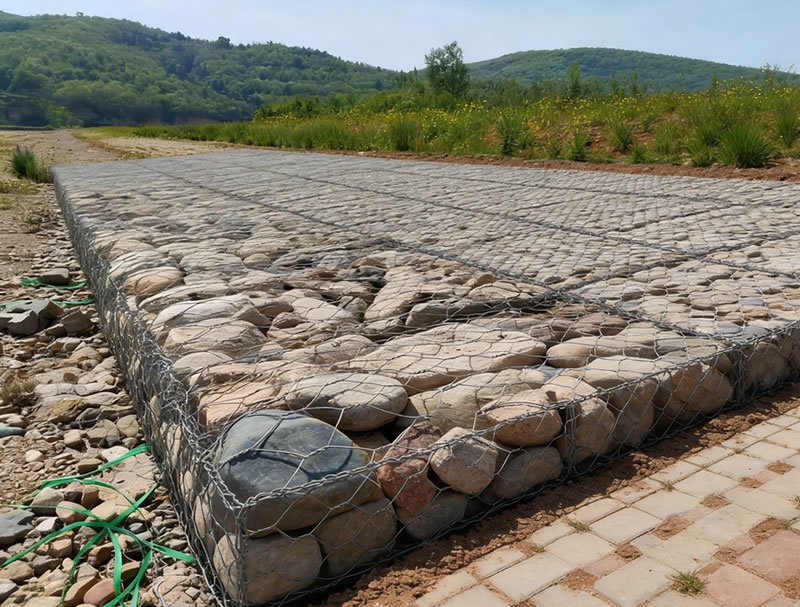

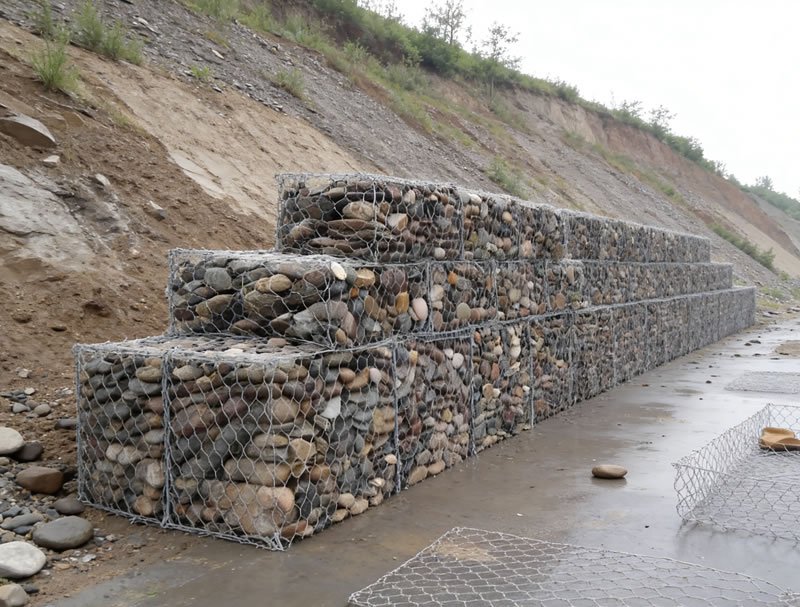

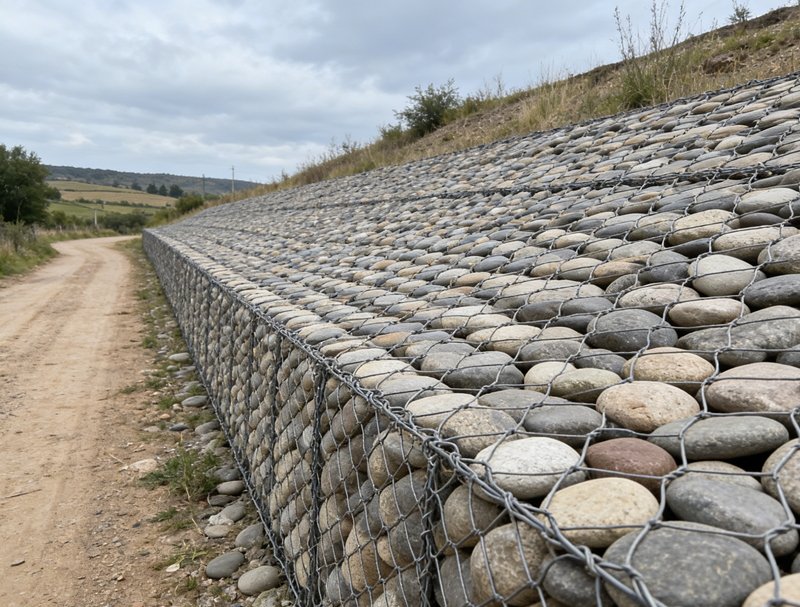

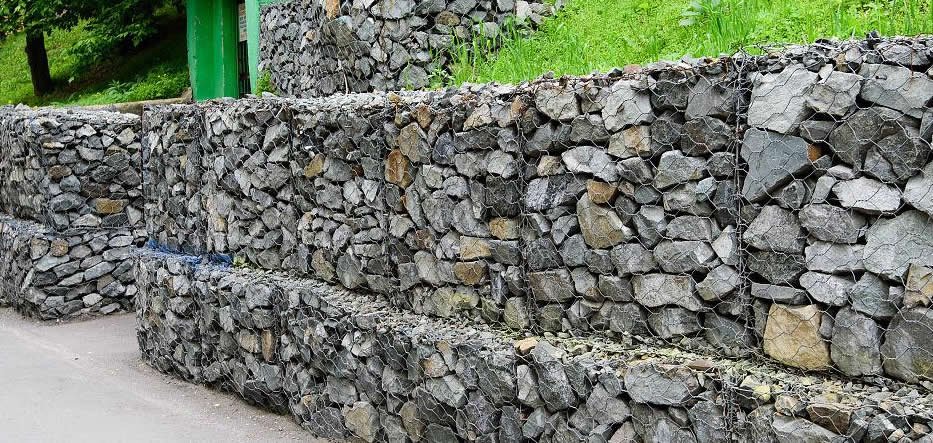

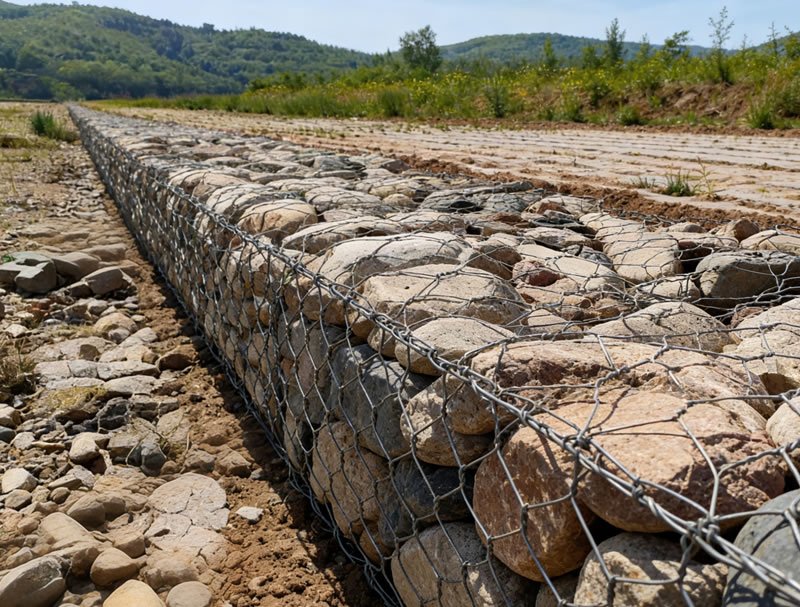

Picture Show
