Jiangyin Rock Gabion Co., Ltd. produces welded mesh gabions. We can design and manufacture according to customer requirements, customize specifications, provide a full range of sizes, and ensure timely delivery. Business cooperation is welcome. Welded mesh gabions are wire containers filled with stones or other materials, used in civil engineering, hydraulic works, landscaping, and architectural projects. They are classified by mesh size, wire diameter, coating, and structure. Main types include gabion boxes for retaining walls, military or security barriers, gabion mattresses for slope protection, baskets for river training and erosion control, panels for architectural facades, and barriers for flood or noise control. Coating options include hot-dip galvanized, Galfan, and PVC-coated wire. Sizes, mesh openings, and filler materials are selected based on project needs. Applications include soil stabilization, channel lining, road embankments, perimeter fencing, and landscape works.
Welded Mesh Gabions Specifications
- Gabion Wire Material: Steel wire, often galvanized, ensuring robust durability and longevity.
- Welded Gabion Wire Gauge: 8 gauge (4.0mm) to 14 gauge (2.0mm). Lower gauges indicate stronger wire.
- Gabion Mesh Openings: 50x50mm, 75x75mm, 100x100mm. Square openings for consistent fill.
- 50 × 50 mm – decorative walls, small stone filling
- 50 × 100 mm – architectural facades, landscaping works
- 75 × 75 mm – retaining walls, slope protection
- 75 × 100 mm – channel lining, soil stabilization
- 100 × 50 mm – erosion control, riverbank protection
- 100 × 75 mm – medium retaining walls, landscape structures
- 100 × 100 mm – heavy-duty retaining walls, noise barriers
- 100 × 150 mm – larger stones for slope stabilization
- 150 × 100 mm – flood control and road embankments
- 150 × 150 mm – breakwaters, large-scale hydraulic works
- 200 × 100 mm – large stone-filled structures for coastal use
- 200 × 200 mm – special applications with oversized rock fill
- Panel Width: Typically 1.0 meter to 2.0 meters wide. Facilitates efficient construction and transport.
- Panel Length: Ranges from 2.0 meters to 4.0 meters. Provides flexibility for various project scales.
- Box Lengths: Available from 0.5 meters to 4.0 meters. Adaptable for diverse site requirements.
- Box Widths: Standard sizes: 0.5 meters to 1.0 meter. Ensures stability and ease of filling.
- Box Heights: Typically 0.5 meters to 1.0 meter. Suitable for various retaining and erosion control needs.
- Internal Diaphragm Spacing: Usually 1.0 meter intervals. Reinforces structure, preventing stone migration.
- Reinforced Edge Wire: 0.5mm to 1.0mm thicker than mesh wire. Provides additional strength and prevents deformation.
- Lacing/Binding Wire: Typically 12 gauge (2.7mm) to 16 gauge (2.0mm). Used for secure assembly.
- Corrosion Resistant Coating: Hot-dip galvanized, Galfan, or PVC-coated. Offers superior protection against rust.
- Wire Tensile Strength: Exceeds 450 N/mm² (65,000 psi). Ensures high resistance to breakage under load.
- Weld Shear Strength: Minimum 70% of wire's tensile strength. Guarantees durable, secure panel connections.
- Assembly Fastener Type: Spiral binders, C-rings, or lacing wire. Provides quick and strong gabion construction.
Picture Show

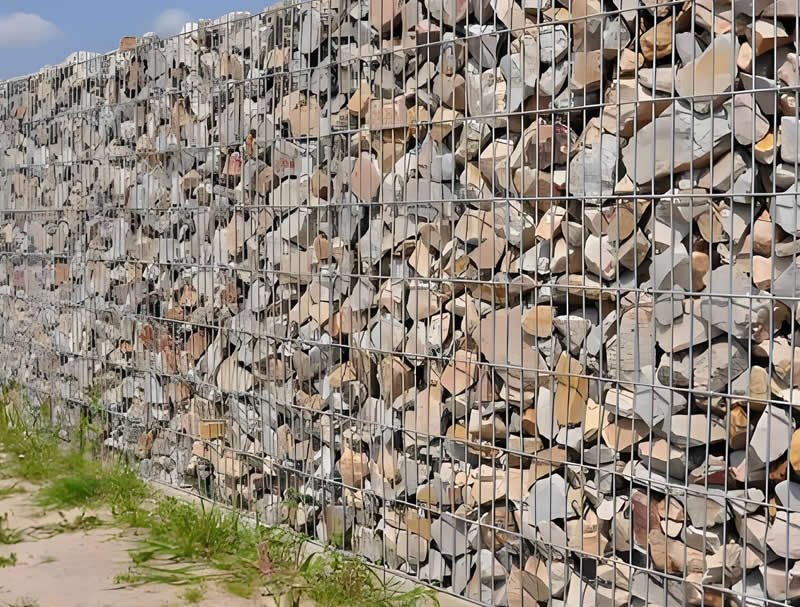

Gabions for Industrial Perimeter Fences
Panel sizes: 2.0×0.5×2.0 m; mesh: 50×100, 100×100 mm; wire: 4.0–5.0 mm. Galfan or PVC-coated for long-term use around factories.

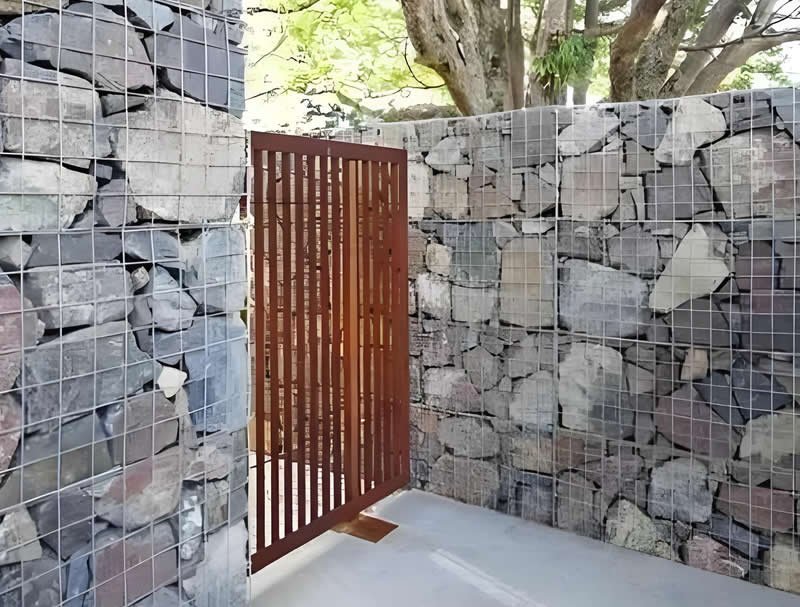

Welded Gabions for Security Barriers
Sizes: 2.0×1.0×1.0 m, 1.0×1.0×1.0 m; mesh: 75×75, 100×100 mm; wire: 4.0–5.0 mm. Heavy galvanized or Galfan-coated

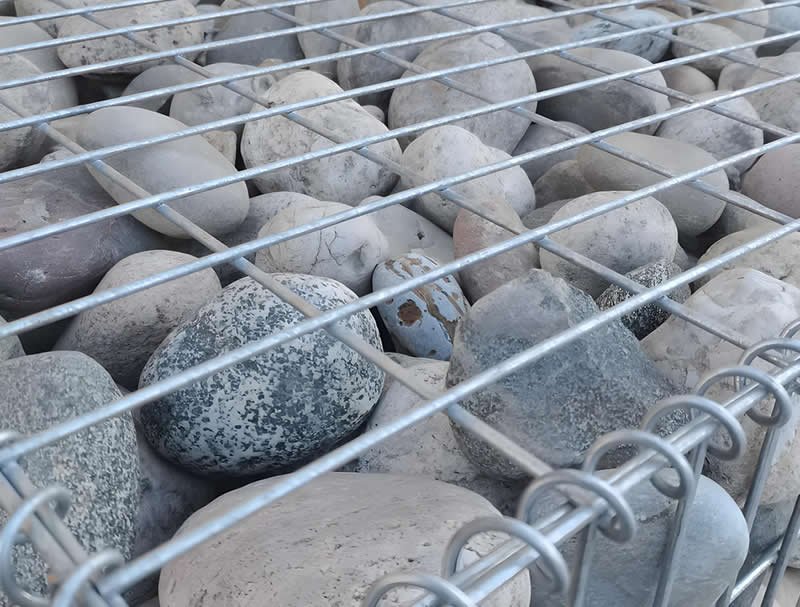

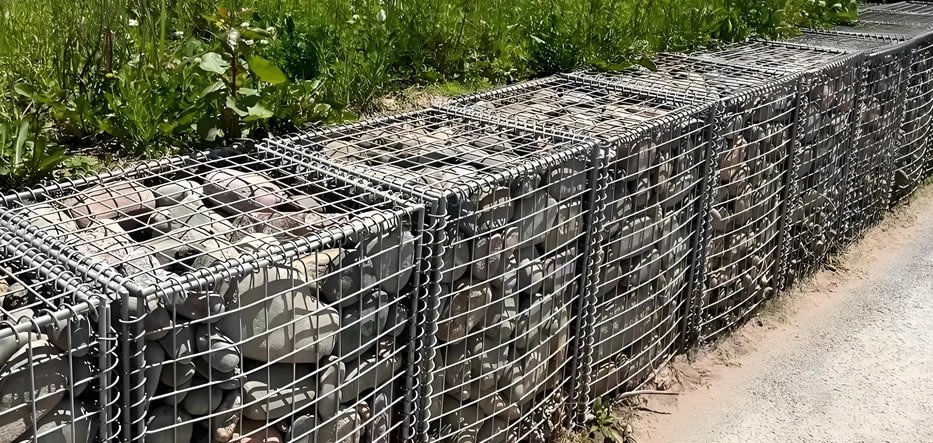

Versatile welded mesh gabions
Sizes: 2.0×1.0×1.0 m, 2.0×0.5×0.5 m; mesh: 50×100, 75×75, 100×100 mm; wire: 3.5–4.5 mm. Galvanized, Galfan, or PVC-coated

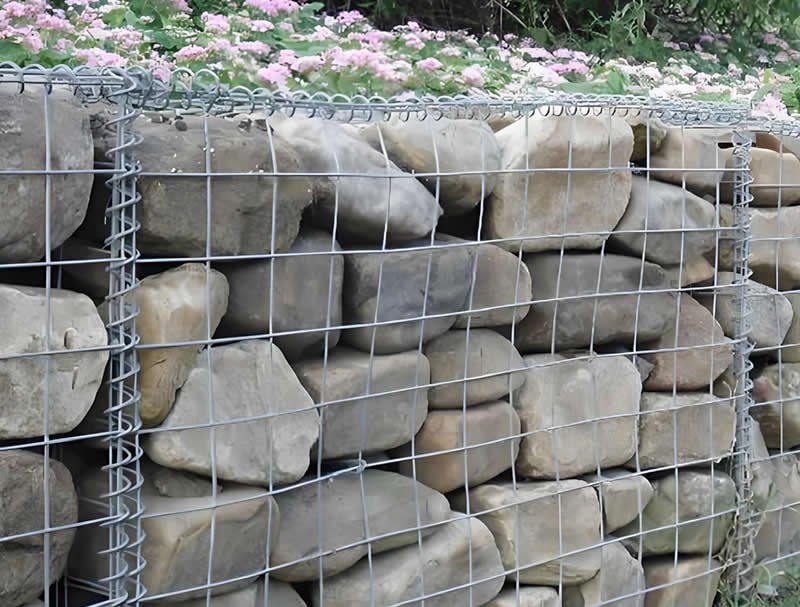

Welded Gabions - Retaining and Decorative Walls
Common sizes: 2.0×1.0×1.0 m; mesh openings: 50×50, 75×75, 100×100 mm; wire: 3.0–5.0 mm. Hot-dip galvanized or PVC-coated

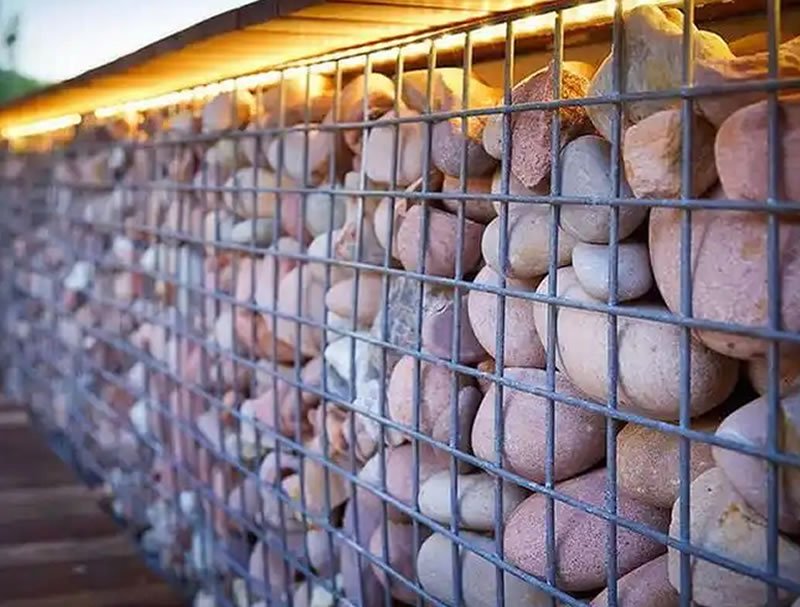

Welded Gabions for Landscaping Walls
Sizes: 1.0×0.5×0.5 m, 2.0×0.5×0.5 m; mesh: 50×100, 100×100 mm; wire: 3.5–4.0 mm. Filled with 100–200 mm decorative stones.

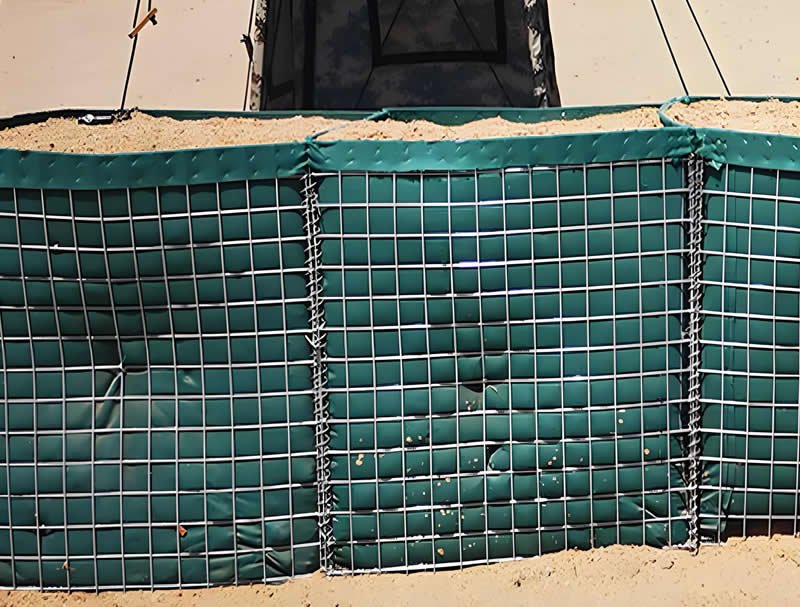

Welded Mesh Gabions for Military Use
Sizes: 2.0×1.0×1.0 m, 1.5×1.0×1.0 m; mesh: 75×75, 100×100 mm; wire: 4.5–5.0 mm. Lined with geotextile, filled with sand, stones, or soil
