Jiangyin Rock Gabion Co., Ltd. offer twisted gabions made from double twisted hexagonal wire mesh, used in applications such as retaining walls, slope protection, river training, and erosion control. Twisted gabions are classified into gabion boxes, Reno mattresses, and gabion sacks, depending on shape and use. They are made from low-carbon steel wire with surface treatments including zinc coating, Galfan coating, or PVC coating for corrosion resistance. Key features include structural flexibility, durability, and the ability to adapt to ground movement without losing effectiveness. We provide product customization and inquiry, welcome to negotiate.
Twisted Gabions Specifications
- Twisted Gabion Box Size 2m x 1m x 1m
Standard gabion size with 2 meters length, 1 meter width, and 1 meter height, widely used for retaining walls and slope protection.
- Twisted Gabion Box Size 2m x 1m x 0.5m
Half-height gabion box, suitable for embankment reinforcement and riverbank protection.
- Twisted Gabion Box Size 1m x 1m x 1m
Compact gabion size for small retaining walls and decorative landscape structures.
- Twisted Gabion Box Size 3m x 1m x 1m
Longer gabion box for large-scale retaining walls, erosion control, and flood management projects.
- Twisted Gabion Box Size 4m x 1m x 1m
Extra-long gabion size for river training, coastal protection, and large retaining wall structures.
- Wire Diameter 2.0mm to 4.0mm
Common wire diameter range for twisted gabions, selected based on structural requirements and load conditions.
- PVC or Galvanized Coating Thickness 0.5mm to 1.0mm
Coating thickness ensures corrosion resistance, commonly applied for coastal or riverbank applications.
- Mesh Opening 60mm x 80mm
Standard hexagonal mesh size for twisted gabions, ideal for retaining stone sizes and structural stability.
- Mesh Opening 80mm x 100mm
Larger mesh opening suitable for bigger rock fillings in erosion control or slope stabilization.
- Mesh Opening 100mm x 120mm
Biggest standard mesh size for twisted gabions, used for heavy-duty structures and coastal protection.
- Length Range 1m to 6m
Twisted gabion boxes are available in lengths from 1 meter to 6 meters to fit different engineering projects.
- Width Range 0.5m to 2m
Standard widths range from 0.5 meter for Reno mattresses to 2 meters for heavy-duty retaining structures.
- Height Range 0.17m to 1m
Heights vary from 0.17 meters for Reno mattresses to 1 meter for gabion walls and slope protection.
- Reno Mattress Thickness 0.17m to 0.3m
Twisted gabion mattresses with thin profiles are used for riverbeds and erosion control.
- Tensile Strength 350N/mm² to 550N/mm²
High tensile steel wire ensures structural integrity and durability in various environmental conditions.
Picture Show

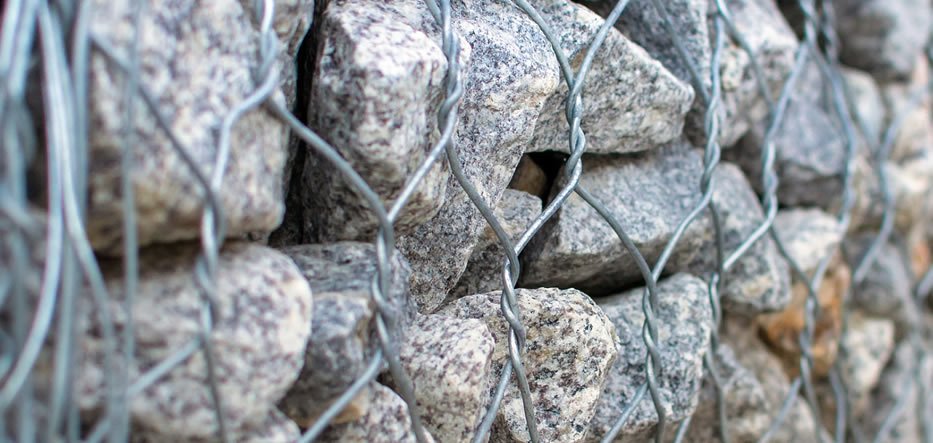

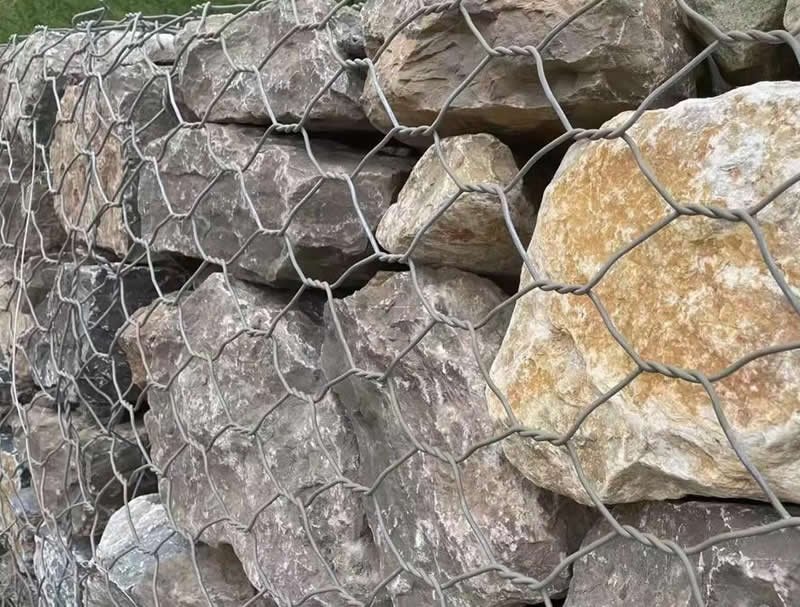

Twisted gabions filled with rocks reinforce embankments and prevent erosion. Mesh Size: 60×80 mm / 80×100 mm

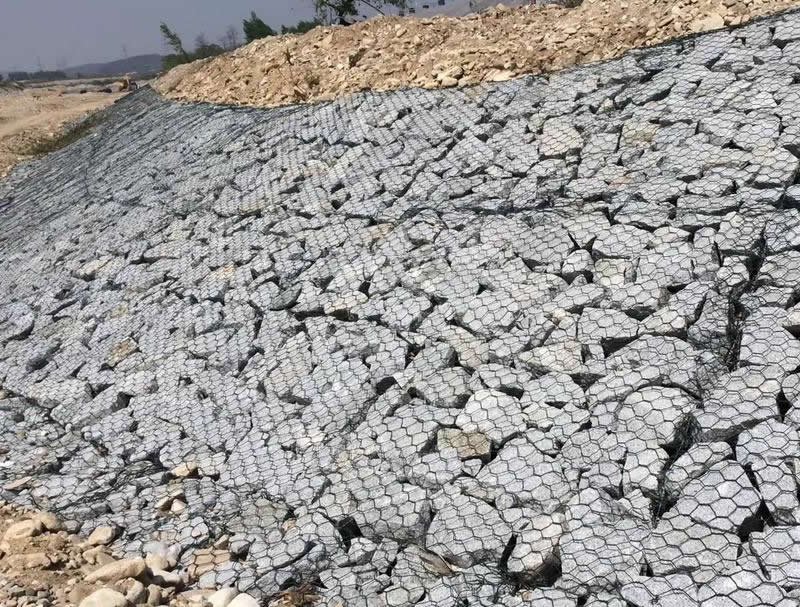

Used to protect riverbanks, controlling erosion and stabilizing water flow. Mesh Size: 80×100 mm / 100×120 mm

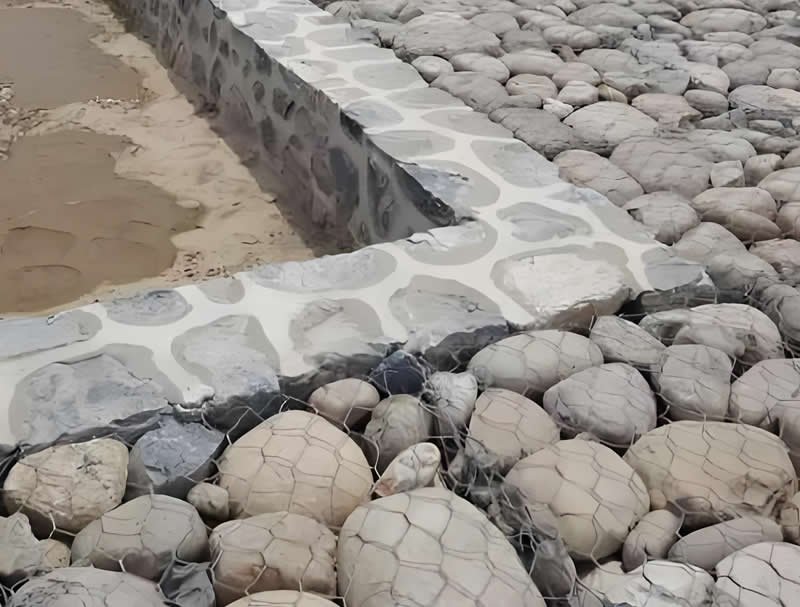

Gabion mattresses line channels, preventing erosion and supporting vegetation growth. Mesh Size: 60×80 mm / 80×100 mm

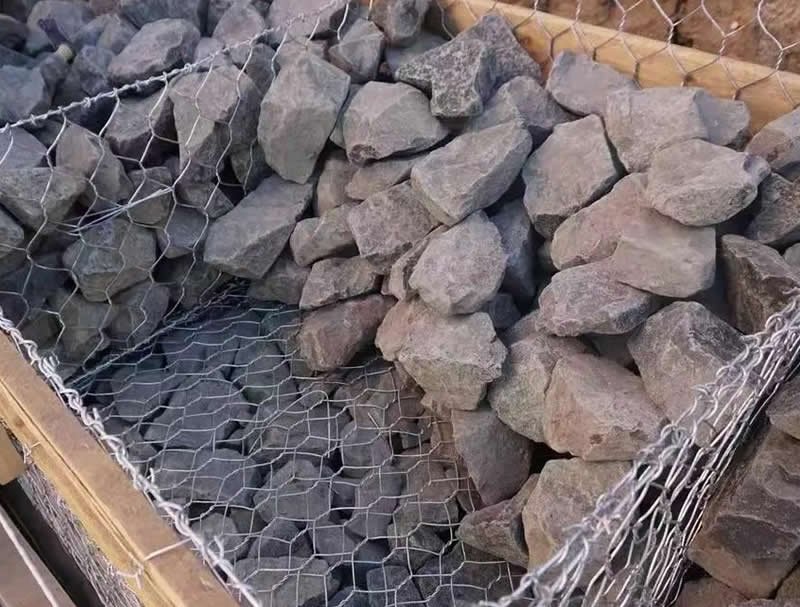

Gabion boxes form strong retaining walls for soil and water applications. Mesh Size: 80×100 mm / 100×120 mm
