Engineering Gabions

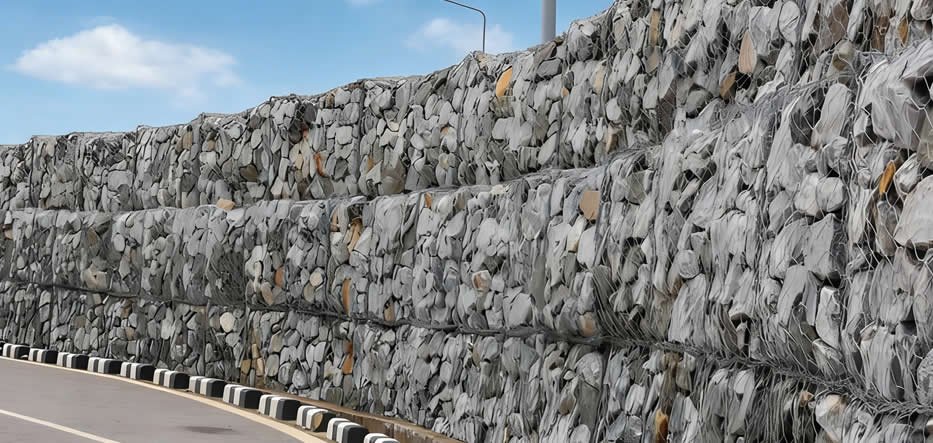

Roadside Protection Engineering Gabion Wall

Jiangyin Rock Gabion Co., Ltd. provides a range of engineering gabions for various applications, including flood control, erosion prevention, and slope stabilization. Categories include riverbank protection, roadbed reinforcement, and military defense structures. These gabions are designed for use in construction, landscaping, and infrastructure projects. The products offer durable solutions for controlling water flow, stabilizing slopes, and building protective barriers. Advantages include easy installation, cost-effectiveness, and long-term performance in harsh conditions. Custom sizes and materials are available based on project requirements, ensuring flexibility and reliability for diverse engineering needs.

Specifications

Mesh Size (mm)
- Small mesh (60×80): Used for fine protection and landscape walls, can be filled with small-sized stones.
- Medium mesh (80×100, 100×120): Used for riverbank protection and roadbed reinforcement.
- Large mesh (120×150, 160×180): Used for flood embankments and landslide control, filled with large rocks..
Wire Diameter (mm)
- Mesh wire: 2.0–3.0mm (common: 2.2, 2.7mm)
- Edge wire: 3.0–4.0mm
- Binding wire: 2.0–2.2mm
Box Dimensions: 2.0×1.0×0.5, 2.0×1.0×1.0, 3.0×1.0×0.5, 4.0×1.0×0.5 (m)

Application Projects

Hydroelectric Engineering

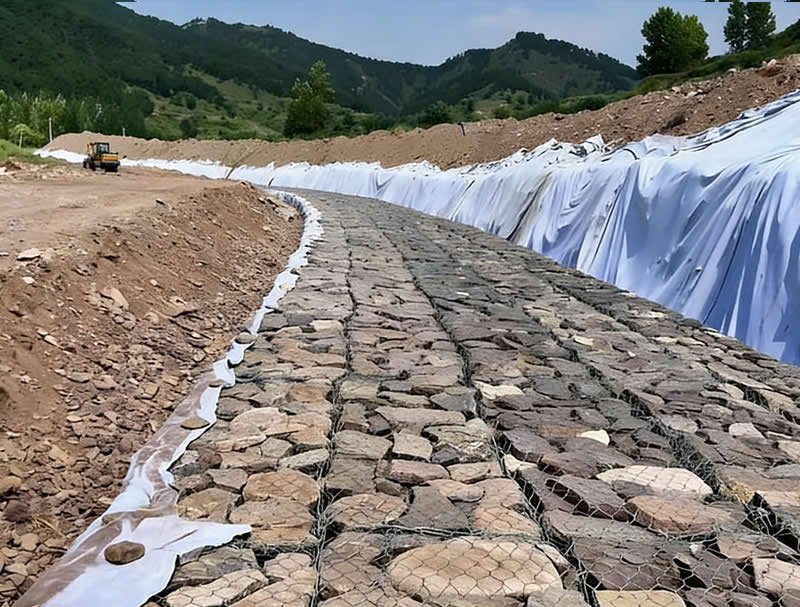

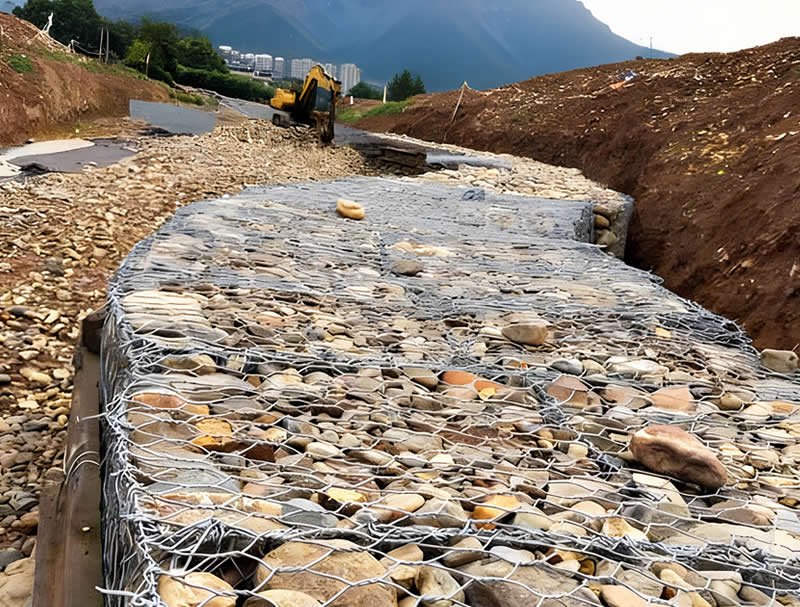

- River Channel and Bank Protection: Prevents erosion and bank collapse.

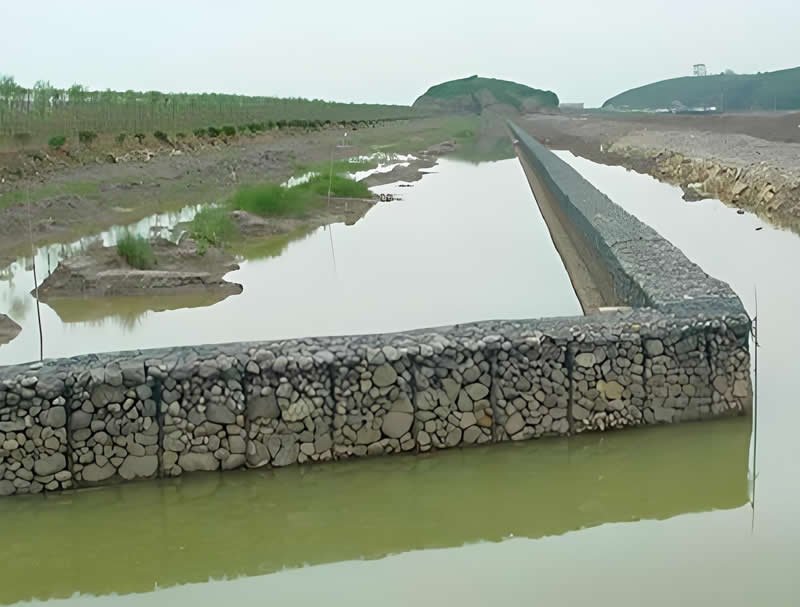

- Flood Barriers and Flood Walls: Used for temporary and permanent flood defense.
- Reservoir and Dam Reinforcement: Protects stilling basins, spillways, and embankments.
Highway and Railway Engineering

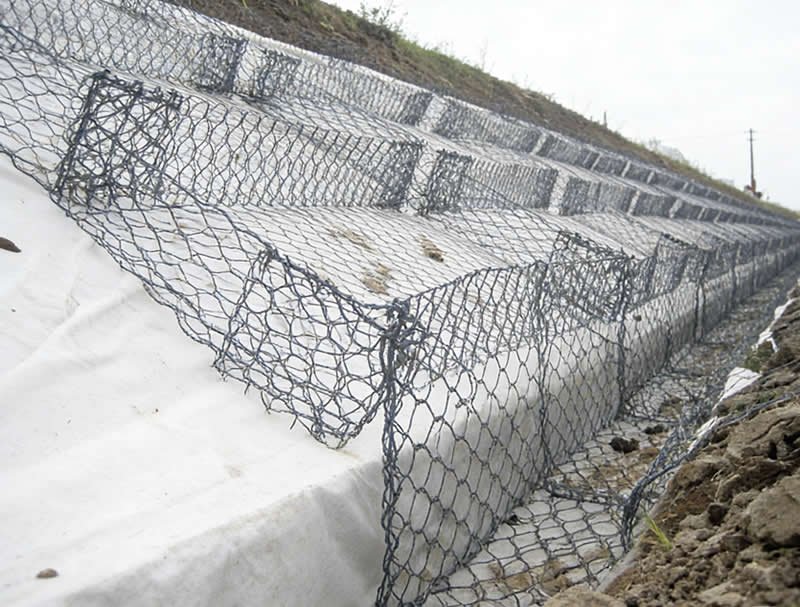

- Roadbed Reinforcement and Slope Protection: Prevents landslides and rockfalls.
- Bridge and Culvert Protection: Prevents water erosion and soil loss.
- Road Repairs: Used for temporary road construction after disasters.
Ecological and Landscape Engineering
- Ecological Slope and Shoreline Protection: Provides habitat for plant growth.
- Landscape Retaining Walls and Flower Beds: Creates walls, flower beds, and steps.
- Wetland Park Construction: Builds wetland islands, shoals, and streams.
Military and Security Engineering
- Blast Walls and Shelters: Protects camps and key facilities from explosions.
- Border and Camp Protection: Creates border defenses and camp barriers.
Other Engineering Applications
- Tailings Dam Management: Stabilizes slopes and controls seepage.
- Urban Flood Control: Alleviates flooding in low-lying areas.
