Military-Grade Gabions for Erosion Control and Secure Enclosures

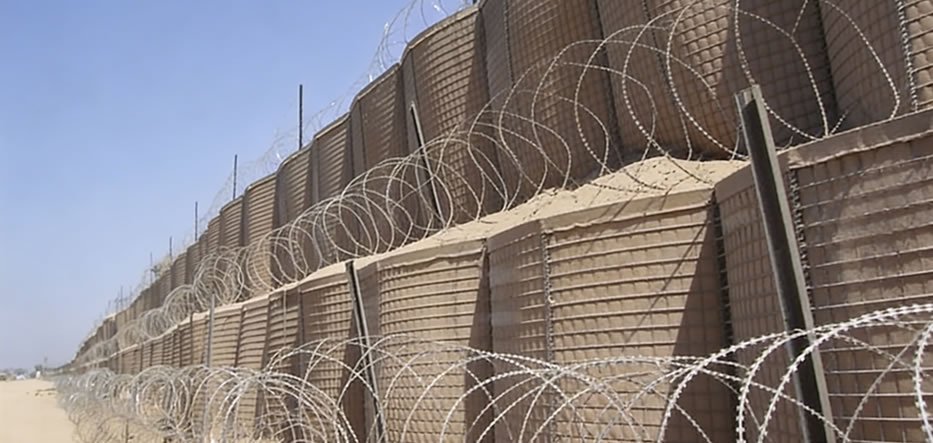

High-Security Military Gabion Fence with Barbed Wire

Jiangyin Rock Gabion Co., Ltd. offers Military Gabions, Military Gabion Mesh (commonly known as Blast-proof Cages / Blast-proof Walls) is a core material for constructing rapid battlefield defenses, featuring a high-strength metal mesh cage structure filled with sand or stones. It offers three major advantages: quick deployment, bulletproof and blast-resistant properties, and flexible assembly.

Specifications (Common Military Use)

Materials and Surface Treatment
- Main Steel Wire: Low-carbon steel wire (Q195/Q235), galvanized steel wire.
- Wire Diameter: 3.0mm to 5.0mm (common military use: 4.0mm, 5.0mm).
- Surface Treatment: Hot-dip galvanization, Galfan, PVC coating.
- Inner Liner: Standard polypropylene geotextile.
Mesh Size and Dimensions
- Mesh Size: 50×50mm, 75×75mm, 60×80mm, 80×100mm (Square / Hexagonal).
- Standard Cage Dimensions (Blast-proof Wall):
  - Common Size: 2.21m × 2.13m × 1.0m.
  - Small Sizes: 1.37m × 1.06m × 1.0m, 0.61m × 0.61m × 0.61m.
- Thickness: 0.8m–1.5m.
- Colors: Earth Yellow, Earth Gray, Military Green, Camouflage (suitable for battlefield concealment).

Manufacturing Methods

Welded Type
- Process: Low-carbon steel wire is spot-welded to form a rigid mesh sheet; the edges are reinforced with thicker wires.
- Structure: Integral / Split mesh panels, quickly connected into cages using spiral binding wire or clips; internal dividers every 1 meter for increased stability.
- Advantages: Strong rigidity, blast and impact-resistant, quick assembly, foldable for transport.

Applications

Battlefield Defense Structures

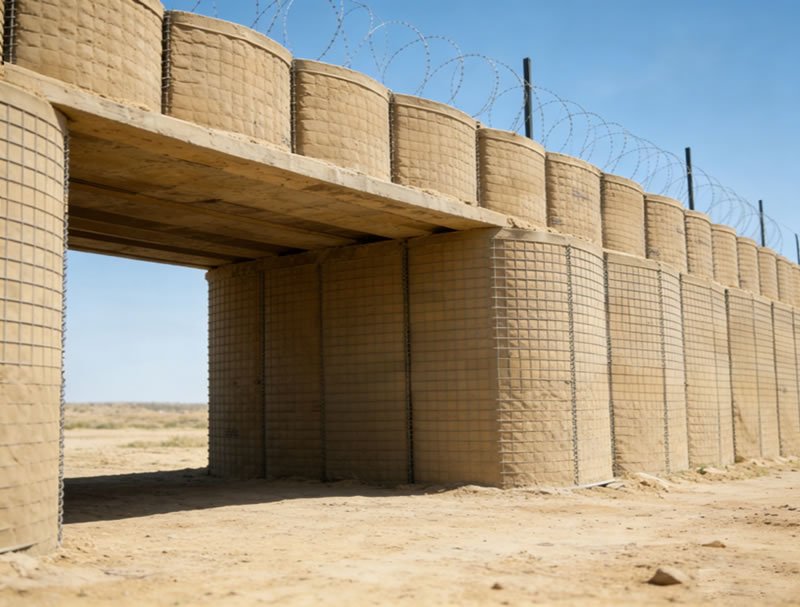

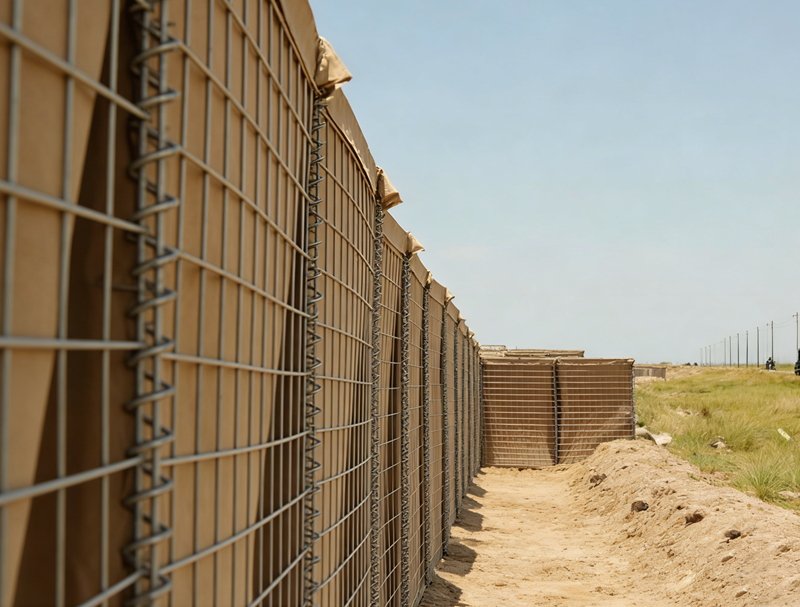

- Blast-proof Walls / Camp Protection: Quickly assembled barriers to withstand explosions, gunfire, and shrapnel.
- Temporary Bunkers / Shelters: Cages form shelters, gun positions, and observation posts, replacing sandbags and trenches.
- Ammunition / Supplies Storage Protection: Creates blast-proof isolation zones to reduce secondary explosions.
Engineering and Camouflage
- Road / Airport Emergency Repairs: Rapid construction of embankments and protective structures.

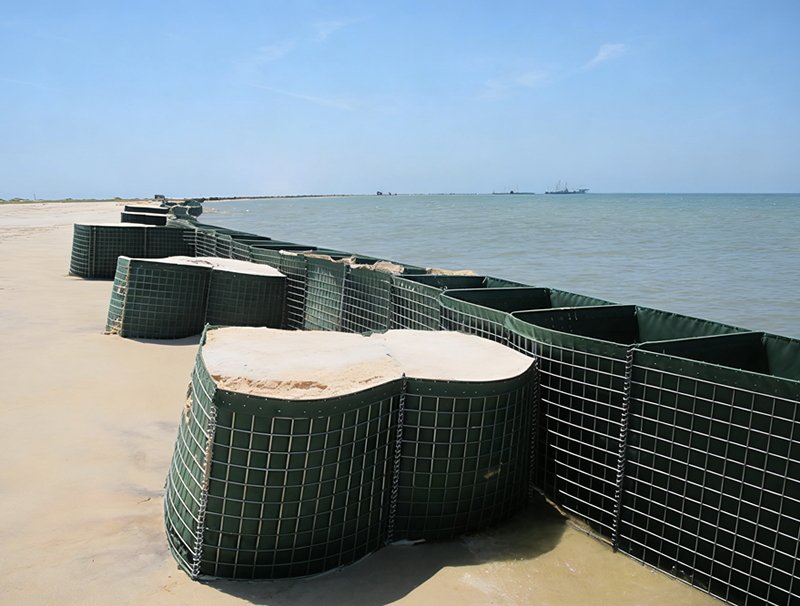

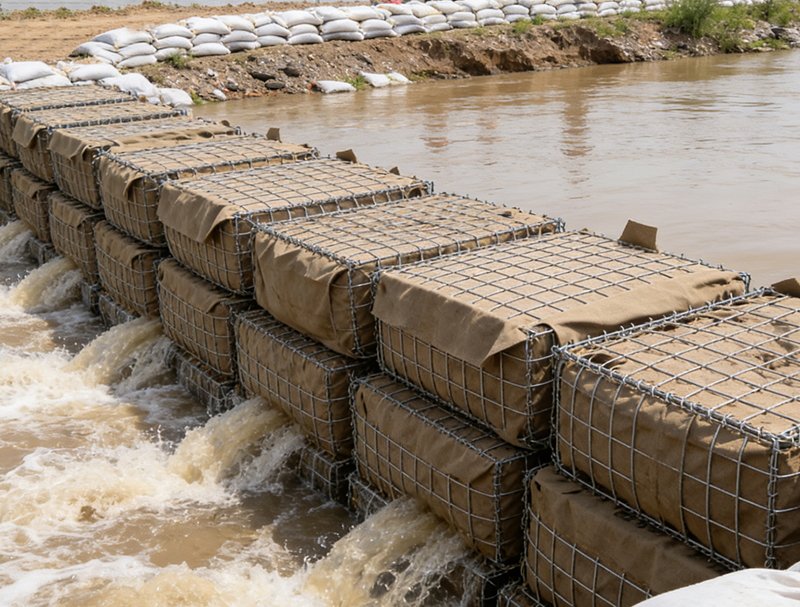

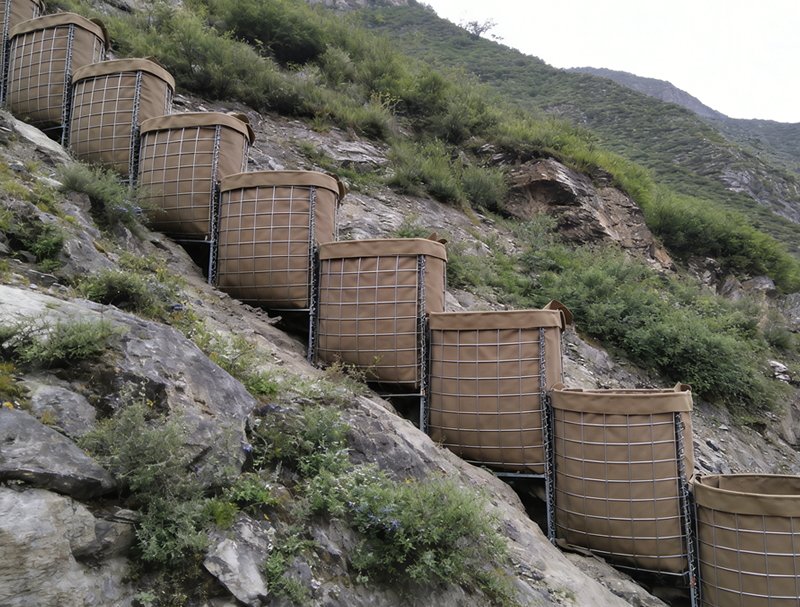

- Flood and Erosion Control: Reinforces riverbanks and protects water infrastructure.
- Camouflage and Obstruction: Combined with vegetation for radar and optical concealment; used in anti-tank and anti-infantry barriers.
Training and Non-War Military Operations
- Tactical Training Grounds: Simulates battlefield environments for various military training.
- Peacekeeping / Counter-terrorism: Quickly establishes safe zones and checkpoints in mission areas.

Key Deployment Points (Quick Setup)

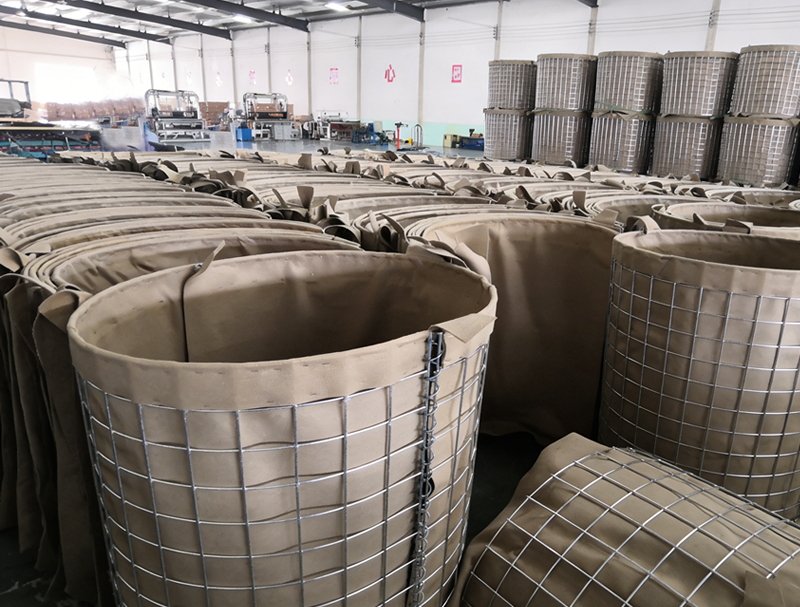

Unfold the foldable mesh cage and secure with spiral binding wire.
Line with geotextile fabric to prevent sand erosion.

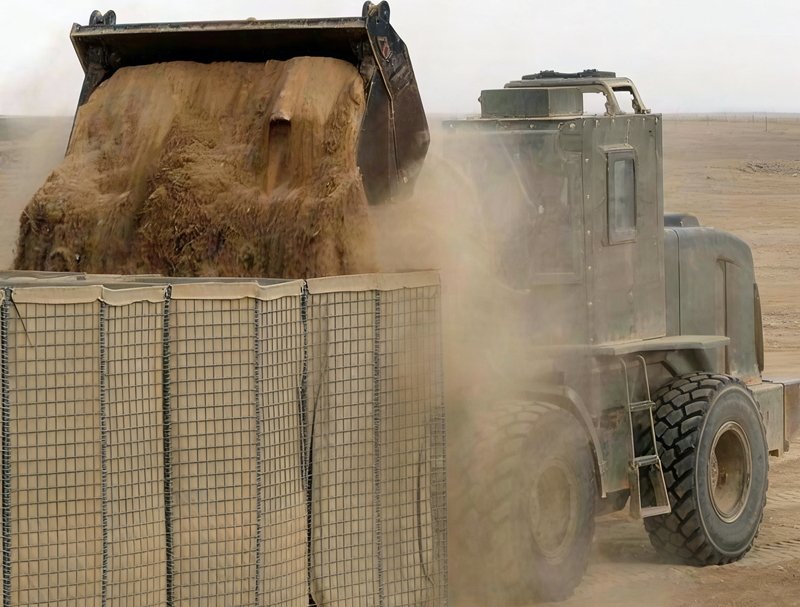

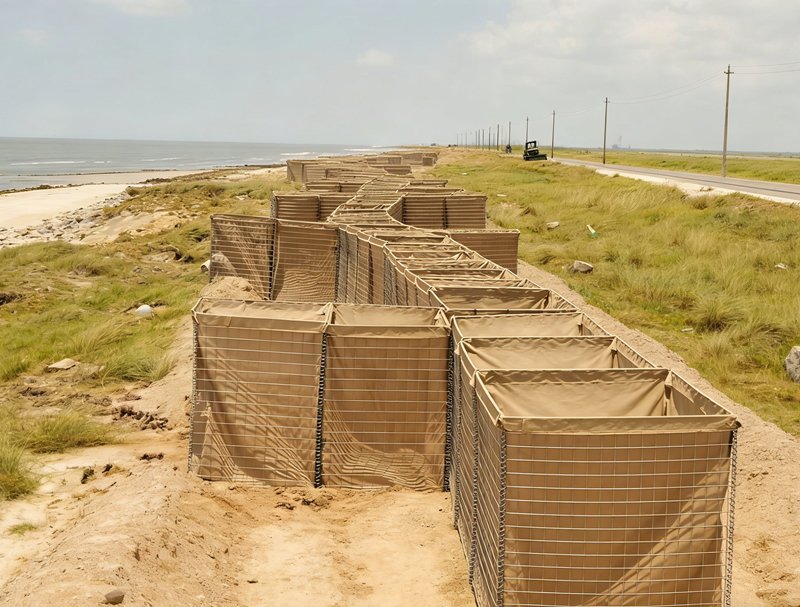

Fill with sand, gravel, or concrete blocks (the denser the filling, the stronger the protection).
For multi-layer stacking, compact the bottom layer, level it, and stagger the layers (similar to bricklaying) to improve overall stability.
