Standard Box Gabion Sizes: 2x1x1m, 3x1x1m, 1x1x1m, 2x1x0.5m, 3x1x0.5m, 4x1x1m

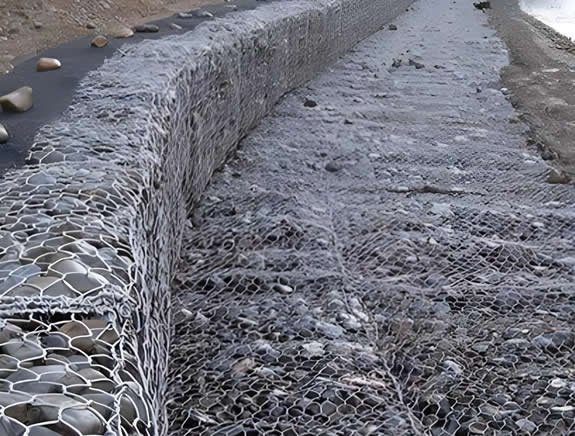

Jiangyin Rock Gabion Co., Ltd. offers Galfan gabions—wire mesh containers made from high-strength steel wire coated with a zinc‐aluminum alloy (commonly 95% zinc/5% aluminum or 90% zinc/10% aluminum) for enhanced corrosion resistance. These gabions are available as hexagonal woven or welded mesh, in box and mattress forms. The Galfan coating provides superior adhesion, durability, and ductility, making them ideal for retaining walls, channel linings, erosion control, and slope stabilization. We provide product customization and inquiry, welcome to cooperate with us for a better tomorrow.

Galfan Gabions Specifications

• Wire Material: Made from low-carbon steel wire with Galfan coating (95% zinc, 5% aluminum) for better corrosion resistance than standard galvanized wire.
• Wire Diameter: Standard wire diameter is 2.0–4.0 mm; 2.7 mm is typical for mesh, 3.4 mm for selvedge wire.

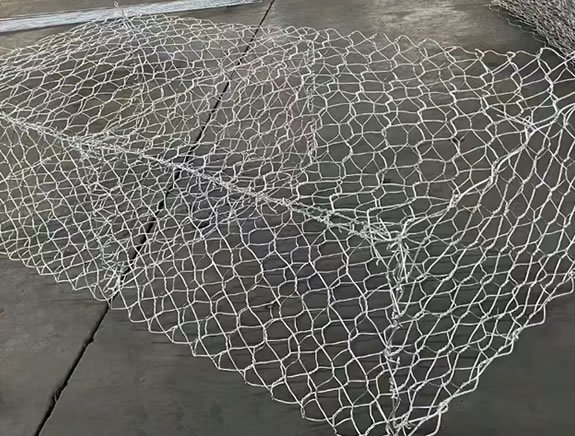

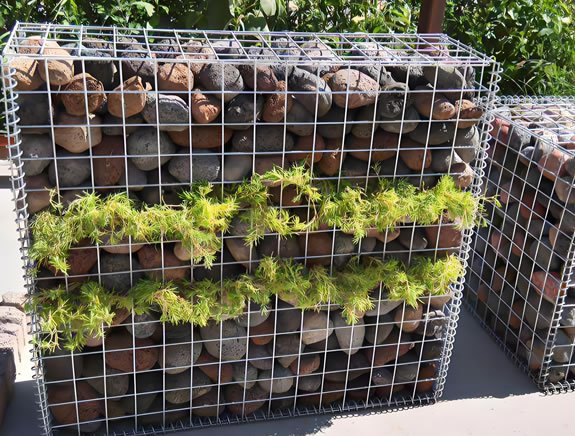

• Mesh Type: Available in hexagonal woven mesh and welded wire mesh to suit different structural and site needs.
• Mesh Opening Size: Hexagonal mesh sizes: 60×80 mm, 80×100 mm, 100×120 mm. Welded mesh: 50×50 mm, 75×75 mm, 100×100 mm.
• Coating Thickness: Galfan coating thickness ranges from 190 g/m² to 300 g/m² depending on environmental exposure.
• Tensile Strength of Wire: Steel wire tensile strength is 350–550 MPa, offering both flexibility and high durability.
• Gabion Box Length: Standard lengths: 1.0 m, 2.0 m, 3.0 m, and 4.0 m, adjusted to project needs.
• Gabion Box Width: Standard width is 1.0 m; custom widths like 0.5 m and 1.5 m are also used.
• Gabion Box Height: Common heights: 0.5 m, 1.0 m, 1.5 m, with custom heights available for special cases.

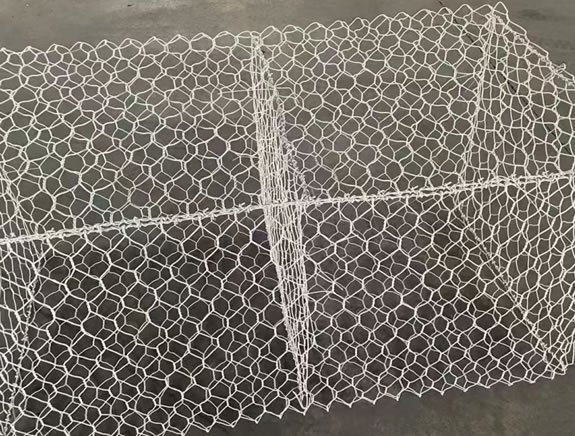

• Diaphragm Spacing: Internal diaphragms spaced every 1.0 meter help maintain the gabion's shape.
• Lacing Wire Diameter: Lacing wire is 2.2 mm diameter and coated with the same Galfan layer as mesh wire.
• Selvedge Wire Diameter: Selvedge wire is 3.4 mm thick for edge strength and enhanced durability.
• Tolerance on Dimensions: Typical size tolerance is ±5% for length, width, and height during production.
• Gabion Roll Length (for mesh sheets): Mesh rolls are 10–50 meters long, used for flexible on-site cutting and forming.
• Gabion Roll Width (for mesh sheets): Roll widths are commonly 1.0 m, 1.5 m, or 2.0 m, based on installation needs.
• Weight per Square Meter: Weight varies from 1.5 to 5.0 kg/m², depending on mesh size and wire diameter.
• Packing Method: Packed in compressed bundles or pallets, securely strapped for shipping.
• Standards Compliance: Complies with EN 10244-2, ASTM A975, BS EN 10223-3 for quality assurance.

Picture Show
