Welded Mesh Gabion Box 1×1×1, 2×1×1, 3×1×1 for Riverbank Protection

We offer Welded Mesh Gabion Boxes made from welded steel wire. These gabion boxes are available in standard sizes such as 1×1×1 m, 2×1×1 m, and 3×1×1 m, with custom dimensions available to meet specific project needs. They are primarily used for riverbank protection, soil retention, erosion control, and retaining walls. The welded wire construction ensures structural integrity. Our Welded Mesh Gabion Boxes are commonly used in civil engineering, landscaping, and hydraulic projects for stabilizing riverbanks, preventing soil erosion, and reinforcing embankments. Available in galvanized, PVC-coated, and Galfan-coated versions, they are designed for long-lasting performance in both fresh and marine environments.

Common Dimensions

• Standard Lengths: 1.0 m, 2.0 m, 3.0 m.
• Standard Width: 1.0 m.
• Standard Height: 1.0 m.
• Custom Dimensions: Custom lengths, widths, and heights available for specific projects.
• Wire Diameter: 3.0–4.0 mm.
• Mesh Size: 50×50 mm, 75×75 mm, 100×100 mm.
• Zinc Coating Weight: 215–300 g/m² for corrosion resistance.
• PVC Coating Thickness: 0.4–0.6 mm.
• Galfan Coating: 200–300 g/m² for enhanced durability.
• Diaphragm Spacing: Internal diaphragms spaced every 1.0 m.
• Lacing Wire Diameter: 2.0 mm, coated for easy assembly.
• Roll Length: 10–50 m.
• Weight: 1.5–5.0 kg/m² depending on wire size.
• Typical Application: Used for riverbank protection, erosion control, and soil retention.

Typical Classifications

• 1×1×1 m Welded Mesh Gabion Box
• 2×1×1 m Welded Mesh Gabion Box
• 3×1×1 m Welded Mesh Gabion Box

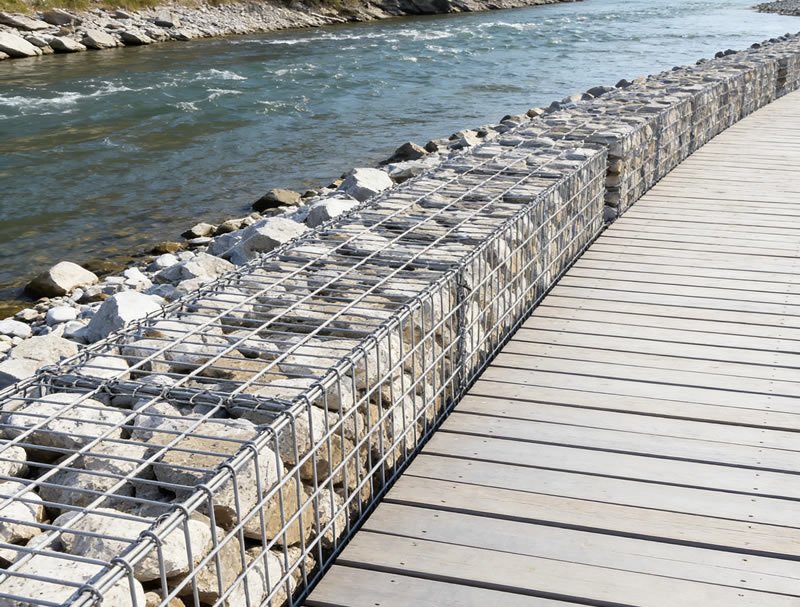

• Riverbank Protection Gabion

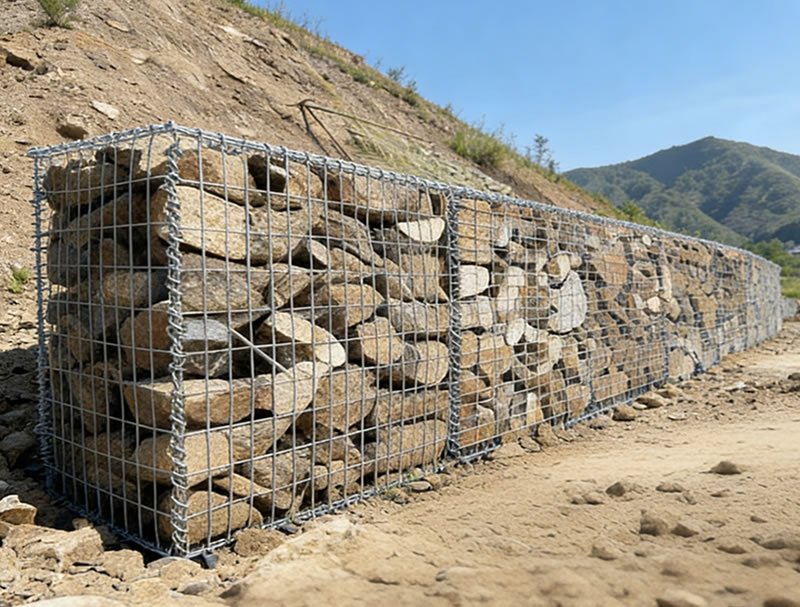

• Soil Retention Gabion

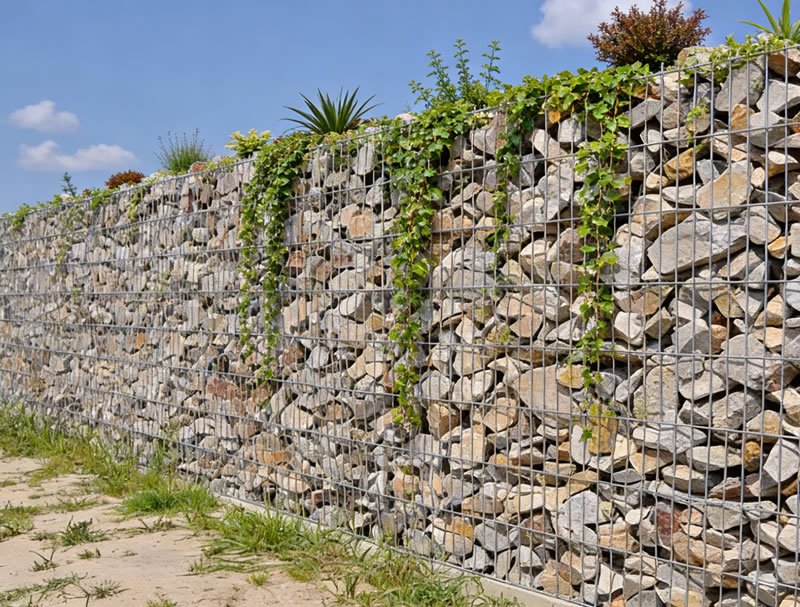

• Retaining Wall Gabion
• Galvanized Steel Welded Gabion

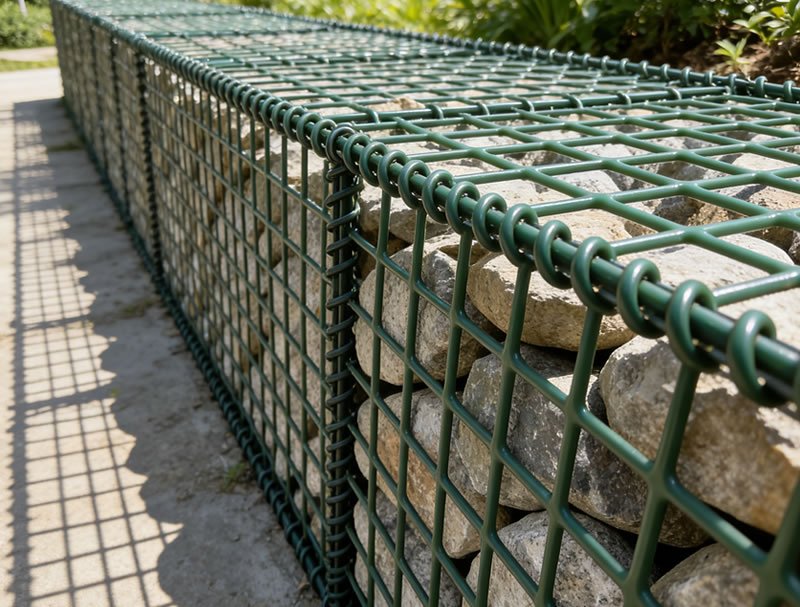

• PVC Coated Welded Gabion
• Galfan Coated Welded Gabion

Image Display
